Revolutionize Your Production: Integrated Spraying Solutions for Optimized Paper Machine Performance

In the demanding world of paper manufacturing, maintaining peak machine performance is not just an advantage—it’s a necessity. From managing raw material costs to meeting stringent environmental standards, paper mills face constant pressure to optimize every aspect of their operations. Yet, a persistent and often underestimated challenge continues to erode efficiency: the accumulation of contaminants and sticky deposits on critical paper machine components.

These tenacious deposits, exacerbated by the industry’s shift towards closed white water circulation, lead to a cascade of problems: frequent paper breaks, unplanned downtime for cleaning, reduced heat transfer efficiency in dryer sections, and ultimately, lower product quality and increased operational costs. Traditional manual cleaning methods are not only time-consuming and labor-intensive but also offer only temporary relief, failing to address the root cause of the issue.

The Game-Changer: What Are Integrated Spraying Solutions?

Integrated Spraying Solutions represent a paradigm shift in tackling paper machine contamination. Far from being simple spray nozzles, these are sophisticated, comprehensive systems designed for precision, prevention, and performance. They combine advanced fluid dynamics, smart control technology, and robust mechanical engineering to apply specialized anti-sticking agents or cleaning solutions precisely where and when needed.

This holistic approach means the system doesn’t just react to fouling; it actively prevents it. By creating a uniform protective layer on surfaces like dryer cylinders and press felts, these solutions stop contaminants from adhering, ensuring surfaces remain clean and operational.

How It Works: Precision, Prevention, and Performance

At its core, an integrated spraying solution involves:

• Precision Application: Utilizing finely atomized spray nozzles to deliver anti-sticking agents with unparalleled accuracy and coverage. This minimizes chemical waste and maximizes effectiveness.
• Proactive Protection: Establishing a continuous, uniform coating that prevents new deposits from forming while actively dissolving and shedding existing ones.
• Intelligent Automation: Integrating with the paper machine’s control system (DCS) for automated operation, responding to machine status like speed changes, planned shutdowns, or even unexpected paper breaks.

Unleashing Unprecedented Benefits: The Impact on Your Bottom Line

Adopting Integrated Spraying Solutions for Optimized Paper Machine Performance translates directly into substantial operational and financial advantages:

Drastically Reduce Paper Breaks and Downtime

The most immediate and tangible benefit is the significant reduction in paper breaks caused by sticky deposits. Clean surfaces mean smoother web travel, fewer disruptions, and a more stable production line. This directly leads to:

• Increased Output: Higher runnability and fewer stops mean more finished product.
• Reduced Maintenance: Less need for emergency interventions and manual cleaning drastically cuts labor and material costs.
• Enhanced OEE (Overall Equipment Effectiveness): By minimizing unplanned downtime, your machinery spends more time producing efficiently.

Significant Energy Savings and Enhanced Heat Transfer

Dirty dryer cylinders act as insulators, hindering efficient heat transfer from steam to the paper web. Integrated spraying systems keep these surfaces clean, ensuring optimal thermal conductivity.

• Lower Steam Consumption: Improved heat transfer means less energy is required to dry the paper, leading to substantial savings on steam.
• Reduced Electrical Load: Cleaner components and smoother operations reduce the overall mechanical load on the machine.

Improve Paper Quality and Consistency

Contaminants can transfer to the paper, affecting its appearance, strength, and printability. A clean machine environment translates to a cleaner, higher-quality end product, minimizing defects and ensuring greater consistency across batches.

Minimize Chemical Waste and Environmental Footprint

Precision spraying systems are designed for efficiency. By applying chemicals exactly where needed and in optimal quantities, they reduce overall consumption and minimize runoff, contributing to a more sustainable and environmentally responsible operation.

Key Features of a World-Class Integrated Spraying System

To achieve truly optimized paper machine performance, an integrated spraying solution must incorporate several critical features:

• Precision Atomization and Uniform Coverage: The heart of the system lies in its ability to create fine, consistent droplets that evenly coat surfaces, even at high machine speeds. Unique designs, like “air barrier” technology, prevent drift and ensure precise targeting.
• Intelligent Automation and PLC Integration: The system should operate autonomously, integrated seamlessly with the paper machine’s PLC/DCS. This includes automatic start/stop based on machine status, adjustable spray parameters, and remote monitoring capabilities.
• Robust Design for Harsh Environments: Paper machine environments are hot, humid, and corrosive. System components—from the main body to pipes, motors, and sensors—must be constructed from durable, high-temperature, and corrosion-resistant materials (e.g., 304 stainless steel, PTFE) to ensure long-term reliability.
• Ease of Maintenance and Operational Simplicity: While complex in its engineering, the system should be user-friendly for operators. Features like modular design, easy access for inspection, and automated cleaning functions reduce maintenance burdens.
• Customized Solutions for Every Machine: No two paper machines are identical. A top-tier provider offers tailor-made designs that perfectly fit the specific layout, paper width, and operational requirements of each client.

Introducing Jiangsu Baozhitong: Your Partner in Paper Machine Optimization

For over a decade, Jiangsu Baozhitong Energy Saving Technology Co., Ltd. (Baozt) has been at the forefront of delivering cutting-edge Integrated Spraying Solutions for Optimized Paper Machine Performance. Rooted in relentless independent R&D, Baozt has become the trusted choice for over 70% of domestic paper enterprises, built on a foundation of customer trust and technological excellence.

Our motto, “造纸剥离剂喷淋系统一体化解决方案提供商” (Integrated Spraying System Solutions Provider for Paper Anti-Sticking), perfectly encapsulates our mission.

Baozt’s Core Differentiators

Baozt’s expertise stems from a powerful blend of innovation, experience, and dedication:

• Independent R&D & Core Technology: With a team boasting PhDs and postgraduates, and over 60 national patents (including 20+ core patents applied to products), Baozt develops proprietary technology like our patented secondary atomization spray nozzles and intelligent control algorithms.
• Rigorous Engineering for Harsh Conditions: Every Baozt system is designed for extreme durability. Using 304 stainless steel, core pipelines with 240°C temperature resistance, and high-temperature-rated components, our solutions thrive where others fail.
• Unparalleled Performance Data:
  • Dirt Reduction: A verifiable 75% – 83% decrease in sticky deposits.
  • Production Efficiency: Up to a 15% increase in overall production efficiency.
  • Cleaning Downtime: Over 50% reduction in cleaning-related shutdowns.
  • Cost Savings: Approximately 30% reduction in operational costs.
  • Yield Increase: Around 25% increase in output.
• Customer-Centric Customization: We understand “one size does not fit all.” Baozt provides “one-factory, one-policy” customized solutions, ensuring seamless integration and optimal performance for your unique setup.

The Baozt Smart Anti-Sticking Spraying System: A Deep Dive

Our intelligent anti-sticking spraying system is a comprehensive, automated solution engineered to directly address the industry’s most pressing pain points:

Solving Industry Pain Points, Boosting Production Efficiency

The increase in white water closed-loop recycling has intensified paper machine fouling. Baozt’s system precisely atomizes anti-sticking agents, creating a uniform protective layer on dryer cylinders or dry webs. This layer not only dissolves existing contaminants but also prevents new ones from adhering, fundamentally solving:

• Paper Breakage: Significantly reduces the frequency of breaks caused by fouling.
• Cleaning Shutdowns: Minimizes unplanned downtime and the need for manual cleaning.
• Energy Consumption: Boosts heat transfer efficiency and reduces equipment load, saving steam and electricity.

Six Core Advantages of Baozt’s System

1. High Efficiency & Stability (Significant Gains): Over 75% dirt reduction, leading to fewer breaks and stops, a comprehensive boost in production efficiency.
2. Precision Spraying (Patented Technology): Patented secondary atomization nozzles create finer mist for precise, uniform application. Our unique “air barrier” design counters site airflow interference, reducing chemical overspray and waste.
3. Intelligent Operation (Automatic Control): Integrated PLC intelligent control links with production line signals (shutdown, paper break), supports DCS remote control, achieving unmanned, smart operation.
4. Convenient & Worry-Free (Easy Maintenance): Innovative structural design allows the main body to be easily pulled out for inspection. Routine operation requires no manual intervention, with added automated spot cleaning functionality.
5. Durable (Rigorous Design): 304 stainless steel body, core pipelines resistant up to 240°C, and high-temperature rated limit switches ensure reliable operation in harsh conditions.
6. Service Guarantee (Worry-Free After-Sales): Professional on-site installation guidance, detailed maintenance manuals, and readily available remote or on-site technical support ensure seamless customer experience.

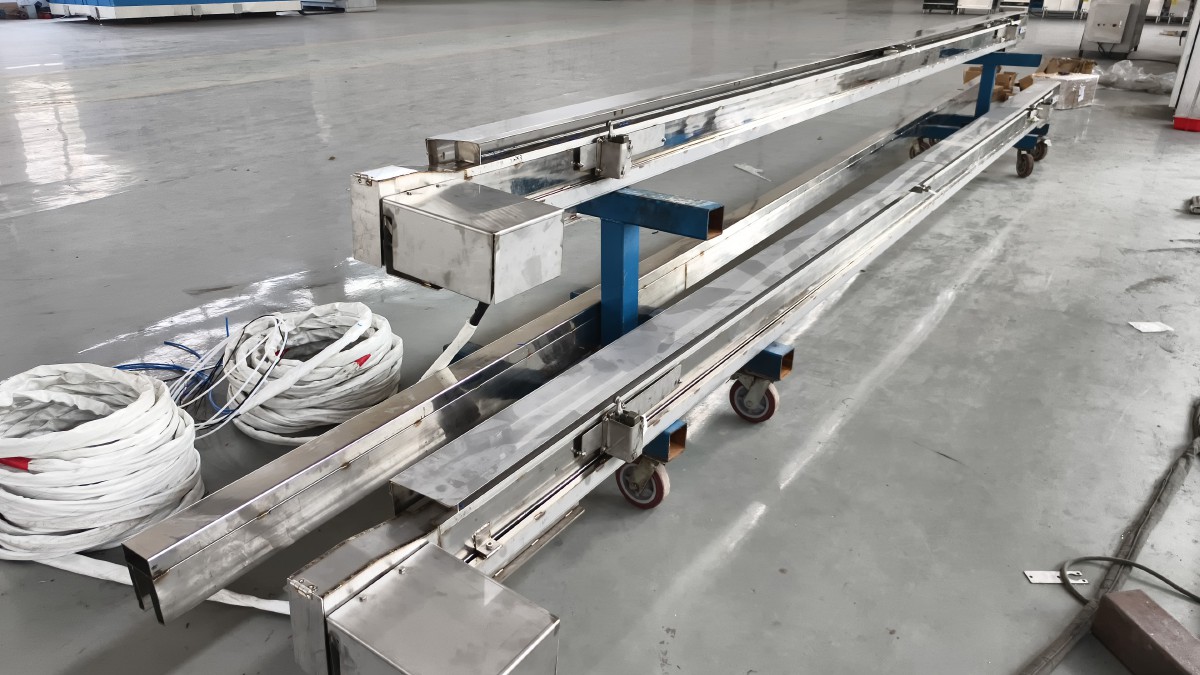

System Composition & Detailed Components

Baozt’s system is a meticulously engineered integration of mechanical, electrical, and automation technologies, comprising:

• Equipment Casing & Main Body: Protection and support for the core reciprocating spraying mechanism.
• Pump Station: Features an imported metering pump and flow calibration column for precise chemical delivery.
• Air Source: Utilizes existing factory compressed air for consistent atomization power.
• Control Cabinet: The system’s “brain,” managing power, spray head movement, metering pump operation, and DCS integration.
• Air/Liquid Pipelines: All made from high-temperature resistant Teflon (up to 240°C) for safe and stable media transport.
• Mounting Brackets: Custom-designed for specific site conditions (dryer or dry web) to securely fix the unit.
• Core Components: Patented secondary atomization spray heads, Japanese imported motors for powerful and reliable motion, imported electromagnetic metering pumps for precise flow control, and high-temperature limit switches for stable performance in adverse conditions.

Six Smart, Fully Automated Spraying Functions

Our system delivers true lights-out operation with these intelligent features:

1. Precise Dynamic Execution: Variable frequency drive (VFD) and movable limit switches allow stepless speed adjustment and precise micro-tuning of spray range and speed.
2. Efficient Energy-Saving Strategy: Smart interlock design ensures the metering pump stops synchronously when the main machine or system pauses, eliminating waste.
3. Modular Task Spray Heads: Adjustable spray direction, supporting single/double/triple head configurations to adapt to varying paper widths.
4. Autonomous Decision-Making Interlock: Automatically starts/stops based on production line signals (parking, paper breaks) for unmanned operation.
5. Intelligent State Perception: Real-time monitoring of motor and spray head travel, with built-in timeout protection logic for automatic shutdown in case of anomalies.
6. Collaborative Control Network: Seamless integration with DCS systems for remote control and status monitoring, embedding into your factory’s smart production network.

Backed by Industry Leaders: Baozhitong’s Reputation

Baozhitong’s commitment to solving critical production challenges through technical innovation has earned us widespread recognition and trust. We hold ISO9001:2015 quality management system certification and are proud to be recognized as a National High-Tech Enterprise. Our patents, such as the “Adjustable Range Spraying Device” and “Automatic Reversing Spraying Device,” exemplify our dedication to reliable, resource-efficient solutions.

Our Valued Partners

We’ve established long-term, mutually beneficial partnerships with numerous leading paper groups, a testament to our system’s reliability and performance. Our partners include (but are not limited to):

• Lee & Man Paper
• Nine Dragons Paper
• Shanying International
• APP Sinar Mas Group
• Sun Paper
• Bohui Paper
• Gold Hongye Paper
• Golden Phoenix Paper
• Jianhui Paper
• Rong Sheng Environment
• Hupo Paper
• Solenis
• And many other prominent industry players like Yuantong Paper, Rongcheng Paper, Shunyu Paper, Huayu Paper.

FAQs: Addressing Your Concerns

We understand you may have questions about implementing such advanced solutions. Here are answers to some common inquiries:

Q1: What should I do if a single limit switch malfunctions? A: In an emergency, access the manual operation interface, select the affected side, and set a single-stroke running time to maintain temporary production. Be sure to address and repair the faulty switch during the next scheduled downtime.

Q2: My spray head’s atomization effect is poor; what’s wrong? A: This is typically due to a clogged spray head. Please replace it with a spare immediately to restore production, then service or clean the clogged head.

Q3: Which spare parts should I keep on hand? A: Spray heads, drag chains, limit switches, relays, and air/liquid tubes are common wear parts. We recommend regular inspection and maintaining a stock of these consumables.

Q4: The control cabinet’s green light is continuously on; what does this indicate? A: This could be caused by several factors: a linked signal input, the motor speed setting being too low, a circuit fault, or a loose chain. Please troubleshoot these potential issues based on your site conditions.

The Future of Paper Production is Integrated and Intelligent

The challenges facing the paper industry are complex, but the solutions are evolving. By embracing Integrated Spraying Solutions for Optimized Paper Machine Performance, you’re not just investing in a piece of equipment; you’re investing in a future of reduced operational costs, enhanced sustainability, and consistent, high-quality output.

Baozhitong stands ready to help you navigate this future. Our proven technology, data-backed results, and unwavering commitment to customer success make us the ideal partner for your paper machine optimization journey.

Ready to Transform Your Operations? Contact Us Today! Discover how Baozhitong’s intelligent spraying solutions can unlock new levels of efficiency and profitability for your paper mill.
